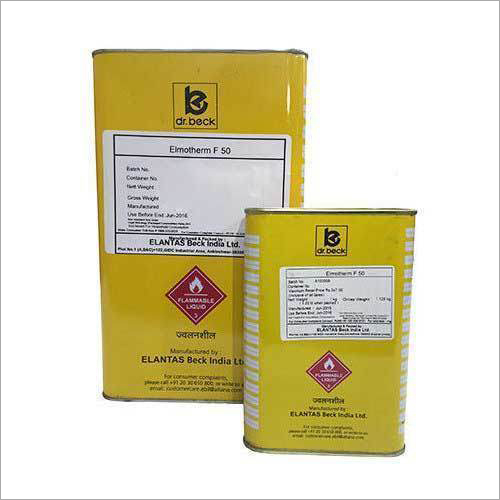

Dr. Beck Elmotherm F 50 Varnishes

Product Description

Dr. Beck Elmotherm F 50 Varnish is an electric insulating heat curing impregnating varnish based on isophthalic alkyd resin. The material does not contain by recipe substances listed in Restriction of Hazardous Substances (RoHS) Directive (2002/95/EC)

Areas of Application

In electrical machines, Dr. Beck Elmotherm F 50 Varnish is used both for manufacturing and repairing the following Thermal class F (155) objects:

• Standard motors
• Generators
• Transformers
• Drives in the chemical industry
• Drives for ships

Properties of cured material

The cured material displays very good film formation and resistance to chemicals. The relatively elastic varnish film has very favourable temperature cycling behavior. A reduction in the degree of hardness of enamelled wires generally used does not occur if the components are property impregnated.

Application Methods

Dr. Beck Elmotherm F 50 Varnish is processed by all conventional impregnating methods, such as dipping, rolling or flooding. It can also be processed under vacuum. In this case, the vacuum should not drop below 20 mbar to avoid high solvent evaporation. The most advantageous impregnating method in each case depends on the given technical possibilities of the plant, the structure of the components, and the demands placed on the object to be impregnated under operating conditions.

Elmotherm F 50 displays low susceptibility to the influence of foreign substances, such as punching grease, oils or primers, however, contamination of the varnish should be avoided as much as possible. After drainage time of 15-45 minutes at room temperature, the product is cured in the circulating-air oven at the temperatures and periods of time given. For large objects or those with a complicated winding structure a two-stage curing process is recommended to ensure removal of the solvents.

FAQ:

1. The Dr. Beck Elmotherm F 50 Varnish is what?

Ans - Doctor Beck Elmotherm F Varnishes are a form of isophthalic alkyd resin-based heat-curing impregnating varnish. They protect electrical equipment and appliances from moisture and corrosive substances.

2. What characteristics do Dr. Beck Elmotherm F 50 Varnishes have?

Ans - The following characteristics apply to Dr. Beck Elmotherm F 50 Varnishes:

• High mechanical strength,
• Excellent heat resistance (up to 155 deg C),
• Excellent dielectric characteristics
• Excellent resistance to moisture and chemicals, and
• Ease of Application
